10 Different Types of Shocks for Trucks

Different types of shocks absorber on round table.

Too much or too little shock can be a bad thing. Your tires stay in contact with the ground due to the shock absorber’s stabilizing properties.

Rides that bounce are more likely if you don’t have these mechanisms in place or they need replacement. In some cases, a lack of one might lead to an increase in the number of rollover and sliding incidents on the route.

Therefore, you must get the best shock absorber that matches both your truck and the conditions under which you’ll be utilizing it.

Here’s a list of the types of truck shock absorbers out there, their advantages and disadvantages, and how to decide on the ideal one for your Wrangler, Silverado, or whatever your bad boy/girl is. Let’s roll!

Types of Truck Shock Absorbers

  • Twin-Tube
  • Gas-Charged, Twin-Tube
  • Gas-filled Monotube
  • External Reservoir
  • Coilover
See also  Do EVs Have Power Steering?

However, different vehicles and suspension designs necessitate different types of shock absorbers, and these might look rather different, although they all do the same thing.

Standard telescopic and spring seat shock absorbers are the most common, although there are also struts and other variations.

1. Shock Absorbers With Conventional Telescopic Design

A simple sort of shock absorber, this one is frequently changed rather than mended. Both front and rear suspension systems use this sort of shock absorber, which is relatively affordable.

2. Strut-type Shock Absorbers

Complete Struts Shock Absorbers Fits for 2008-2012 for Honda for Accord cciyu 172562R 172562L Quick Struts Assembly Front Pair Struts FWD

Struts replace a portion of the suspension system and must be engineered to withstand increased loads and forces, even though they provide the same function.

Strut-based suspension design is becoming more frequent on larger vehicles, although it is most commonly used on small to medium-sized vehicles.

Struts can be classified as either sealed or repairable. There are two types of seals: those that are designed to be replaced, and those that can be repaired (McPherson struts).

3. Spring-seat Shock absorbers

ACDelco Specialty 519-36 Front Spring Assisted Shock Absorber

Both telescopic and strut-type shock absorbers can be found in the spring seat type of shock. Similar to struts, a spring seat shock is both a suspension and a dampening mechanism in one.

Although they are similar in function to struts, they aren’t intended for use with significant side loads. Spring seat shocks, like conventional shock absorbers, are sealed and must be replaced in their whole.

Knowing the kind of Shock Absorber you Need

A variety of shocks are available, each with a unique approach to smoothing out your ride. The wide variety of shocks on the market necessitates some research to determine which one is best for your driving style.

See also  Do EVs Have a Differential?

Ram 2500 owners, who prefer rocky trails, will need a special type of shock than Jeep Grand Cherokee owners, who traverse less jagged terrain. This isn’t just because the vehicles aren’t interchangeable.

Purpose of a Shock Absorber

The job of a dampener is to reduce the jarring effects of the suspension platform’s compression as well as bounce. Each jolt is absorbed and dissipated by the shocks as heat, which leads to a reduction of the rebound in your ride.

There are two main types of shocks: gas-charged and hydraulically-charged. Aeration (which is a mixture of air with fluid, generating foam and diminishing performance) is a concern with hydraulic shocks, so gas-charged shocks are the best option for high-speed driving.

As a result, gas-charged shocks can be less comfortable to ride in a Jeep that spends most of its time on the road or on slower-paced off-roading.

The fluid, valve, and piston are present in all types of shocks, regardless of how they go about doing it. Piston movement causes fluid to be displaced by small holes in the piston, resulting in resistance.

The spring is slowed down by the resistance, absorbing the movement’s energy and reducing its bounce. Shock absorbers that are commonly used for performance include:

a. Conventional Shock Absorbers

1. Monotube

Monroe 911501 Reflex Monotube Shock Absorber

In comparison to a twin-tube shock absorber, this type of shock absorber has the smallest number of parts and the simplest construction, but it is also more expensive. In trucks and vans, monotube shocks are common. They are also commonly found in vehicles that are used for transportation or in areas where rough road conditions are commonplace

See also  Is a Car Battery AC or DC?

2. Shock Absorbers with Gas-Filled Mono Tubes

KYB 551140 Gas-A-Just High Pressure Monotube Gas Shock

There are a lot of these types of shock absorbers out there. To keep hydraulic oil from frothing up, gas-filled shocks use a gas such as nitrogen.

During the manufacturing process, gas is pumped into the shock absorber tube and then the injection point is sealed off. No matter how fast the piston goes through the oil, gas-filled shocks remain effective.

For off-road vehicles that travel over long distances on uneven roads, these tires are ideal. A lot of racing cars make use of them as well, which is why they’re among the most expensive.

3. Air shocks

Vigor 25979394 Air Absorber Shock Suspension Strut Spring Rear Left or Right Compatible with 2002-2014 Cadillac Escalade ESV EXT 2000-2014 Chevrolet Avalanche Suburban 1500 Tahoe GMC Yukon XL 1500

These are not the same as gas-filled shocks. The hydraulic oil in air shocks is contained in a separate chamber that contains air.

Throughout the shock absorber’s process, a valve supplies air to the gas chamber, which lowers or raises the vehicle’s body.

4. Twin-tube

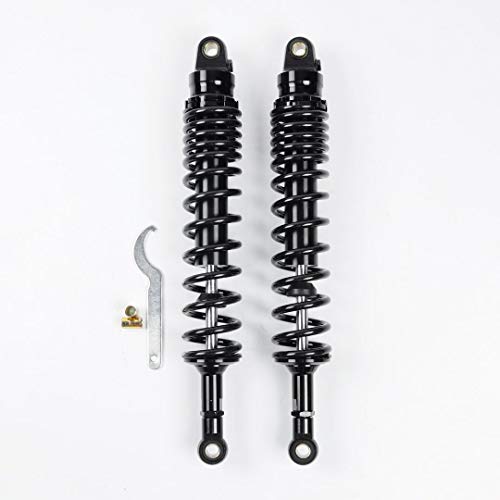

Shock Absorbers with Coil Spring Front/Rear 1 Pair Aluminum Round End 420mm Black

Two cylinders house the internal fluid of the most popular twin-tube shocks found in vehicles and compact SUVs.

Twin-tube shocks look remarkably similar to monotube shocks on the outside, making it difficult to differentiate one from the other simply by looking

5. Coilover

Rev9 R9-HS2-064_1 Hyper-Street II Coilover Suspension Lowering Kit, Mono-Tube Shock w/ 32 Click Rebound Setting, Full Length Adjustable, compatible with Toyota Corolla (E140) 2009-13

Coilover shocks, which are sometimes mistaken for struts because of the coil spring that surrounds them, are found in automobiles with double-wishbone or multilink suspension systems.

In some vehicles, Coilover shocks can be installed as a performance or towing option

b. Adjustable Shock Absorbers

1. Air and Electronic shocks

Front Air Shock Absorbers Struts Left & Right Replacement for 2011-2017 BM-W X3 F25 X4 F26 2013-2018 xDrive35i 37116797027 37116797028

These shocks let you fine-tune your ride stiffness and softness to suit your tastes. That chosen ride depends on the amount of hydraulic fluid that can be injected into a shock’s chambers.

See also  3 Types of Tail Lights for Vehicles

Larger hydraulic holes allow for more fluid to pass through smaller holes in shock absorbers. A softer ride is the direct result of increased fluidity.

2. Active Dampening Shock Absorbers

Rear Shock Absorbers Damper 10.2in Hydraulic Replacement for Motorcycle ATV Dirt Bikes

Like a traditional monotube shock, but with an adjustable valve configuration operated by a vehicle’s computer system, this shock is designed similarly.

Many people are familiar with the ADS from Mercedes and the EDC from BMW as popular alternatives.

3. Magnetic or Electronic Ride Control

Willyon 84977478 84176631 Front Electronic Shock Assembly with Magnetic Ride Control for 2015 2016 2017 2018 2019 2020 Escalade Tahoe Suburban GMC Sierra 1500 Yukon XL, 1 Pair

A switch in a vehicle’s computer system is used to control electronic shocks. The shocks are stiffened by an electromagnet using ferrofluid, a hydraulic fluid that contains iron.

In other electronic shock systems, fluid flow is increased or decreased utilizing solenoids, which are electronic conductors.

Ride modes are available in some vehicles, and the driver can select one from a list of available options. The GMC Yukon and Cadillac Escalade are two of the most popular full-size SUVs by General Motors and utilize these shock systems.

4. Air Shock

Monroe MA834 Max-Air Adjust Shock Absorber

Air suspension systems use rubber airbags inflated by a compressor instead of or in addition to a traditional spring. Drivers also utilize them in an active suspension system in conjunction with other components.

For a more comfortable ride, air shocks can be used. The compressor will push additional air into the back air springs to elevate the backside of the vehicle’s cargo bed if it is full or if the truck is being towed by another vehicle.

5. Self-leveling Shock

KYB SR2010 Excel-G Self Leveling Shock

These shocks resemble twin-tube or monotube shocks from the outside, but they can get adjusted to different driving situations, like air shocks can be. In many Dodge Chargers, Volvos, etc., the most common type is Nivomat.

See also  Do EVs Have to Pay Congestion Charge?

Shock Absorber Pros and Cons

Reservoir

Pros

  • Compression dampens at a more steady pace because more fluid is driven into the exterior reservoir of air/nitrogen.
  • There’s no chance of aeration here.
  • The piston can now travel the full length of the shock’s body, resulting in more travel.
  • Re-buildable
  • Valving options are more numerous

Con

  • The cost
  • Due to the number of fittings, it is more likely to leak.
  • The reservoir may necessitate unique mountings.

Monotone

Pros

  • It’s possible to mount this device upside-down.
  • More efficient in dissipating heat than a twin-tube system.
  • Greater sturdiness than twin-tube pistons because of the bigger piston diameter.
  • The tighter tolerances in production have led to an increase in damping precision.
  • Off-road enthusiasts will appreciate this vehicle’s high level of durability and reliability.

Cons

  • Costly
  • System stacking results in reduced travel time.

Coil-over

Pros

  • Some can be adjusted for ride height and dampening performance, which is a nice feature.
  • Towing/load-carrying Jeeps benefit from the additional support provided by these tires.
  • Assemblable in the vast majority of cases

Cons

  • It is pricey
  • Custom installation or extensive customization is required
  • It’s not always easy to fine-tune

Twin-Tube

Pros

  • Low-cost
  • Excellent for highway driving and occasional 4×4 use.

Cons

  • The tendency of a fluid to create foam (aeration) when it is exposed to air reduces its performance.
  • Speed causes the body to quickly heat up
  • Size reduction equates to a smaller diameter and therefore reduced fluid resistance.

Gas-charged Twin Tube

Pros:

  • The nitrogen-filled outer chamber of a system makes it impervious to aeration.
  • a more rapid and improved bounce back
  • Preventing “brake dive” requires a faster response.
See also  What is a Tonneau Cover?

Cons

  • Over time, gas leaks may occur.
  • It is possible to extend the life of a product.
  • A difficult installation if the axle isn’t slack.

Shock Absorber Components

Even while shock absorbers vary greatly in design and function, their basic components are the same.

1. Mounts

These are the pieces that hold shocks to the body and suspension of a car or truck. The upper and lower mounts are available. In both cases, a bushing, as well as a bolt, are put into an “eye” in the layout. Lower mounts often feature “eyes,” whereas top mounts have “pins,” which is a common design.

2. Bush

These can be seen on the brackets. Bushings, which are often constructed of rubber or urethane, reduce noise and wear by isolating metal components from one another. One of the shock absorber parts that can be replaced is the bushing

3. Coil Spring

Varying types of shock absorbers include a coil spring as an element of the mechanism. Coil-over shock absorbers, or spring coil shock absorbers, are the most popular names for these devices. Although it appears like a suspension strut, this sort of shock should not be confused with one.

4. Piston and Rod

There are apertures or valves in the shock absorber piston. These channels are critical to the shock’s operation. In the shock absorber cylinder, the piston is guided by the piston rod section.

5. Cylinder for Shock Absorption

The shock absorber’s body is made up of this tube. The compression oil is contained in this tube, and the shock absorber piston travels through it.

See also  Pickup Truck vs Jeep

6. Bolts

The screws on either end hold the shock to the vehicle’s body or the suspension in place. These must be torqued to the correct values. Shocks that don’t perform as planned can be caused by under-torquing.

Additional shock absorber components comprise:

  • Nitrogen gas and chamber
  • Plates and washers
  • Oil Seal
  • Oil Guide
  • Rod Guide

How does Shock Absorber Bush Work?

This is the section of the shock absorber that connects the shock mount to the vehicle’s chassis.

As a result, there is no metal-on-metal contact. Bushings also reduce vibrations caused by vertical wheel movement on uneven road surfaces. Both of the device’s ends have shock absorber bushings.

Polyurethane, a synthetic rubber, makes up the majority of the bushes. Softer cushioning and better noise and vibration reduction are advantages of rubber shock absorber bushing.

When it comes to sensation, polyurethane shock absorber bushings, on the other hand, are firmer. Rubber bushings wear out much more quickly than this. Polyurethane bushings, on the other hand, need to be lubricated, unlike rubber ones.

Rubber bushing shock absorbers need to be installed by a professional to prevent damage to the rubber bushing and the components. It is possible to install urethane shock absorbers on your own. The continual movement of shocks causes the bushings to wear out.

As a result, the bushings begin to exhibit symptoms of wear. Shock absorber bushes from motorcycles to vehicles and trucks all have the same symptoms, which are more or less consistent. There’s a lot of bouncing and rattling going on.

See also  10 Trucks Similar to the GMC Canyon

The Function of the Shock Absorber Mount

Both the chassis and the axle are connected by the shocks. The shock absorber is attached to the vehicle via a shock absorber mount.

The eye or pin kind of mount is available. Eye mounts” have a hole through which a bolt passes. Threaded shafts are used to attach nuts to the “pin” mount.

Are Your Shock Absorbers Working?

If you see any of these indicators, it’s time to replace your shock absorbers:

  • When your truck’s front end sags while braking, it’s known as a “nose-diving truck,” and the stopping distance is typically greater than 22 feet at 70 mph.
  • After a bump, your truck continues to jerk up and down as you drive.
  • Swaying in the wind indicates that your truck is struggling to withstand severe winds, particularly on the highway.
  • Rollover risk is increased due to the increased weight transfer caused by a truck leaning to one side.
  • Stiffness in the steering wheel indicates worn-out shocks, which can cause misalignment in your truck’s critical components.
